Loading Plans

Detailed loading plans allow the sender, haulier and recipient to identify vehicle loads quickly and easily. This speeds up loading and safety checks.

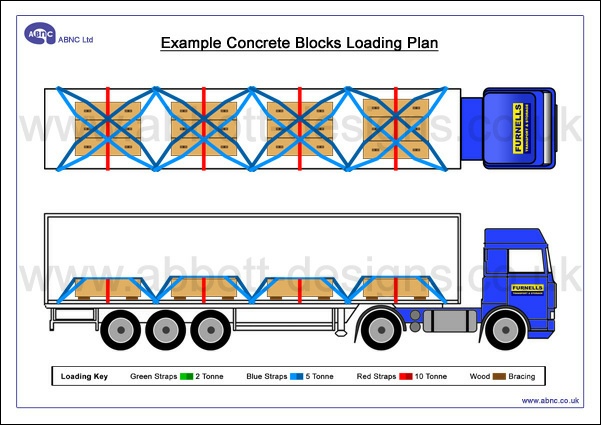

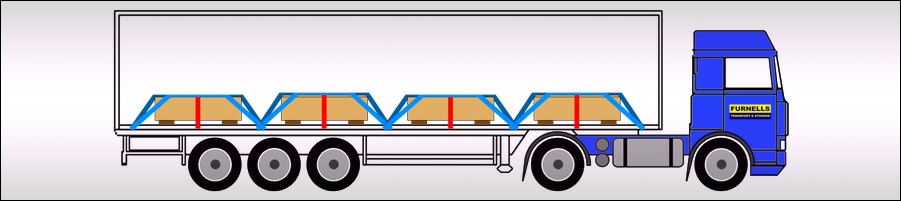

Abbott Designs produce lorry, trailer and truck loading plans that visualise the load layouts on specific vehicles. Top and side views, allow item orientation, bracing and strapping arrangements to be clearly understood. A loading key differentiates between strap tonnage capacities. In loads where individual item placement is crucial, item labels are including in the graphics. For unconventional loads detailed photographs and measurements are taken to ensure an accurate graphical representation and a full understanding of loading requirements.
